AMI BEARINGS UCFCS211NP
#UCFCS211NP
On request

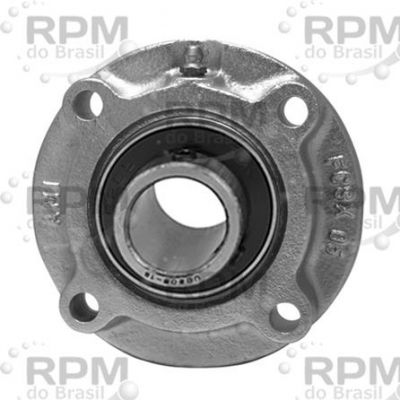

Flange-Mount Ball Bearing Unit - Four-Bolt Piloted, 55 mm Bore, Cast Iron - Nickel Protection Housing, Standard Duty, Set Screw Locking, Contact with Flinger
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | AMI BEARINGS |
| Category | FLANGE-MOUNT BALL BEARING UNITS |
| Bore diameter | 55 mm |
| Radial static load capacity | 3000 kgf |
| Bolt circle diameter | 136.5 mm |
| Seal type | Contact with Flinger |
| Overall length/diameter | 162 mm |
| Length through bore | 55.6 mm |
| Bore type | Round |
| Pilot diameter | 114.3 mm |
| Duty type | Standard Duty |
| Unit standoff | 40.4 mm |
| Mounting type | Four-Bolt Piloted |
| Bolt size | M12 |
| Housing material | Cast Iron - Nickel Protection |
| Lubrication type | Lubrication Fitting |
| Locking device | Set Screw |
| Series | UCFCS200NP |
| Radial dynamic load capacity | 4400 kgf |
| Replacement bearing | UC211 |
