AMI BEARINGS UGSHE210

Name: AMI BEARINGS UGSHE210
Brand: AMI BEARINGS
SKU: UGSHE210

#UGSHE210 On request

Category PILLOW BLOCK BALL BEARING UNITS

Part Number UGSHE210

UGSHE210 50MM PILLOW BLOCK

Manufacturer description

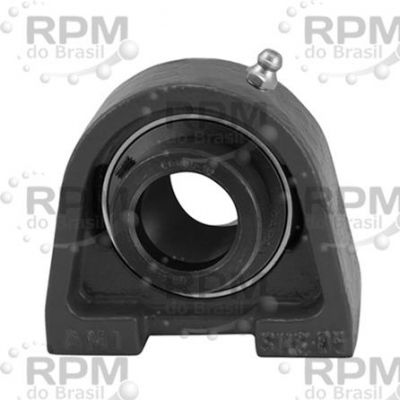

Pillow Block Ball Bearing Unit - Tapped Base, 50 mm Bore, Cast Iron Material, Normal Duty

Price on request — a consultant will confirm lead time and terms.

Talk to a technical consultant

Specifications

Brand	AMI BEARINGS
Category	PILLOW BLOCK BALL BEARING UNITS
Mounting	Tapped Base
Overall width	64.6 mm
Bore diameter	50 mm
Radial dynamic load capacity	3600 kgf
Bore type	Round
Radial static load capacity	2370 kgf
Base to bore centerline	2.252 in
Base width	53 mm
Duty type	Normal Duty
Bolt center-to-center length	101.6 mm
Housing material	Cast Iron
Bolt size	M16
Locking device	Eccentric Collar
Lubrication type	Lubrication Fitting
Seal type	Contact with Slinger
Series	UGSHE200
Overall length	135 mm
Replacement bearing	UG210
Overall height	115 mm
Manufacturer product page	http://catalog.amibearings.com/item/eccentric-collar-locking-2/king-tapped-base-pillow-block-unit-ugshe200-series/ugshe210
