AMI BEARINGS KHFCF209-27
#KHFCF209-27
On request

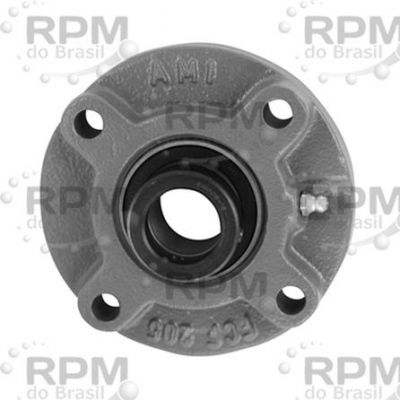

Flange-Mount Ball Bearing Unit - Four-Bolt Piloted, 1.6875 in Bore, Cast Iron Housing, Standard Duty, Eccentric Collar Locking, Contact Seal
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | AMI BEARINGS |
| Category | FLANGE-MOUNT BALL BEARING UNITS |
| Bore diameter | 1.6875 in |
| Radial static load capacity | 4610 lbf |
| Bolt circle diameter | 5.125 in |
| Seal type | Contact Seal |
| Overall length/diameter | 6.125 in |
| Length through bore | 1-23/32 in |
| Bore type | Round |
| Pilot diameter | 4-1/4 in |
| Duty type | Standard Duty |
| Unit standoff | 1-1/2 in |
| Mounting type | Four-Bolt Piloted |
| Bolt size | 1/2 |
| Housing material | Cast Iron |
| Lubrication type | Lubrication Fitting |
| Locking device | Eccentric Collar |
| Series | KHFCF200 |
| Radial dynamic load capacity | 7420 lbf |
| Replacement bearing | KH209-27 |
