AMI BEARINGS KHF207-23NP
#KHF207-23NP
On request

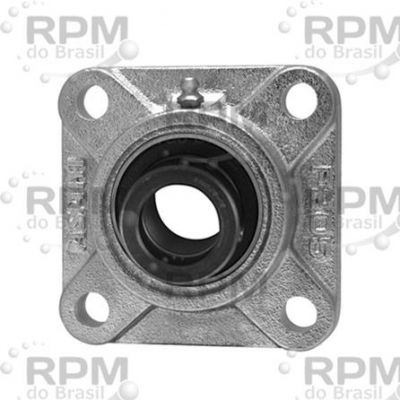

Flange-Mount Ball Bearing Unit - Four-Bolt Flange, 1.4375 in Bore, Cast Iron - Nickel Protection Housing, Standard Duty, Eccentric Collar Locking, Contact Seal
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | AMI BEARINGS |
| Category | FLANGE-MOUNT BALL BEARING UNITS |
| Bore diameter | 1.4375 in |
| Radial dynamic load capacity | 5820 lbf |
| Bolt center-to-center length | 3.625 in |
| Radial static load capacity | 3460 lbf |
| Bore type | Round |
| Seal type | Contact Seal |
| Duty type | Standard Duty |
| Length through bore | 1-17/32 in |
| Mounting type | Four-Bolt Flange |
| Lubrication type | Lubrication Fitting |
| Housing material | Cast Iron - Nickel Protection |
| Series | KHF200NP |
| Locking device | Eccentric Collar |
| Replacement bearing | KH207-23 |
| Expansion type | Non-Expansion Bearing (Fixed) |
