AMI BEARINGS
Call

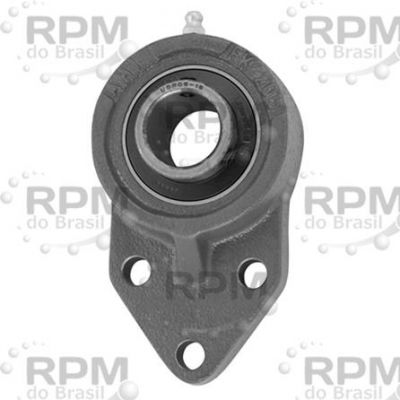

AMI BEARINGS UCFK209
#UCFK209
On request
Flange-Mount Ball Bearing Unit - Three-Bolt Bracket Style, 45 mm Bore, Cast Iron Housing, Standard Duty, Set Screw Locking, Contact with Flinger
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | AMI BEARINGS |
| Category | FLANGE-MOUNT BALL BEARING UNITS |
| Bore diameter | 45 mm |
| Vertical bolt spacing | 43 mm |
| Bore type | Round |
| Shaft centerline height | 65 mm |
| Duty type | Standard Duty |
| Hub diameter | 106 mm |
| Mounting type | Three-Bolt Bracket Style |
| Bracket width | 80 mm |
| Housing material | Cast Iron |
| Unit standoff | 52.2 mm |
| Locking device | Set Screw |
| Bolt size | M10 |
| Radial dynamic load capacity | 3350 kgf |
| Lubrication type | Lubrication Fitting |
| Radial static load capacity | 2090 kgf |
| Series | UCFK200 |
| Seal type | Contact with Flinger |
| Replacement bearing | UC209 |
| Length through bore | 49.2 mm |
| Manufacturer product page | http://catalog.amibearings.com/item/set-screw-locking-4/king-three-bolt-flange-bracket-unit-ucfk200-series/ucfk209 |
| Horizontal bolt spacing | 54 mm |
