BROWNING 22H200SD
#22H200SD
On request
3514122

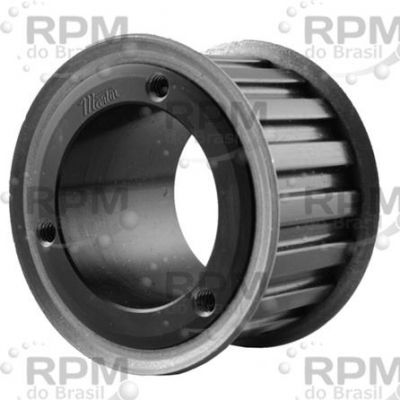

Manufacturer description3514122 Synchronous Gearbelt Sprocket - 0.5000 in Pitch, 22 Tooth, 3.4470 in OD, 2.0000 in Belt Width
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
BROWNING — BROWNING 22H200SD
- Constant Speed - No slip; no creep; minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Light Weight - High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft; Split Taper & QD Bushing styles, as well as, finished and minimum plain bore
Specifications
| Brand | BROWNING |
| Category | TIMING BELT PULLEYS |
| Number of teeth | 22 |
| Outside diameter | 3.447 in |
| Belt width | 2 in |
| Material | Cast Iron |
| Pitch | 1/2 in |
| Length through bore | 1.83 in |
| Flange outside diameter | 3.75 in |
| Face width | 2.3438 in |
| Pitch diameter | 3.501 in |
| Pulley construction | Plain |
| Belt type | H |
| Number of hubs | 1 |
| Bore type | QD Bushed |
| Manufacturer catalog number | 3514122 |
| Bushing series | SD |
| Manufacturer upc number | 662289347186 |
| With flanges | With Flanges |
| Weight | 3.6 lbs |
| Bushing bore range | 0.5000 to 2.0000 in |
