BROWNING 1032531
#1032531
On request

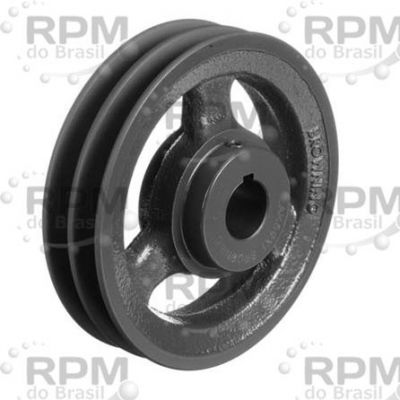

2AK59X1 V-Belt Pulley - 3L, A Belt Section, 2 Groove, 5-1/2 (A) in, 5.16 (3L) in Pitch Dia., 5.7500 in O.D., Finished w/ Keyway & SS, 1.0000 in Bore Size, Cast Iron Material
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
BROWNING — BROWNING 1032531
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A & B Combination (A/B) configuration
- 1, 2 & 3 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B & 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
Specifications
| Brand | BROWNING |
| Category | V-BELT PULLEYS |
| Number of grooves | 2 |
| Bore diameter | 1 in |
| Outside diameter | 5.75 in |
| Material | Cast Iron |
| Length through bore | 1.3438 in |
| Pitch diameter | 5-1/2 (A) , 5.16 (3L) in |
| Face width | 1.375 in |
| Overall width | 1-27/32 in |
| Belt section size | 3L, A |
| Pulley construction | Fixed |
| Bore type | Finished w/ Keyway & SS |
| Manufacturer upc number | 662289150366 |
| Keyway size | 1/4 x 1/8 in |
