BROWNING
Call
BROWNING 48L050SDS
#48L050SDS
On request
3513116
Manufacturer description3513116 Gearbelt Sprocket - 0.3750 in Pitch, 48 Tooth, 0.5000 to 2.0000 in Bore Dia., 5.7000 in OD, 0.5000 in Belt Width
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
BROWNING — BROWNING 48L050SDS
- Constant Speed - No slip; no creep; minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Light Weight - High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft; Split Taper & QD Bushing styles, as well as, finished and minimum plain bore.
Specifications
| Brand | BROWNING |
| Category | TIMING BELT PULLEYS |
| Number of teeth | 48 |
| Belt type | L |
| Belt width | 0.5 in |
| Outside diameter | 5.7 in |
| Pitch | 0.375 in |
| Face width | 0.75 in |
| Bore diameter | 0.5000 to 2.0000 in |
| Manufacturer catalog number | 3513116 |
| Flange outside diameter | 6 in |
| Manufacturer upc number | 662289352647 |
| Pitch diameter | 5.73 in |
| Cad drawing | https://www.3dcontentcentral.com/PremiumSSS-Download-Model.aspx?catalogId=12261&id=18636 |
Related products

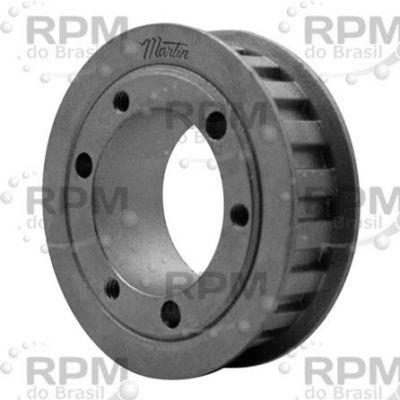

Illustrative image
