BROWNING D50Q30
#D50Q30
On request
1174465

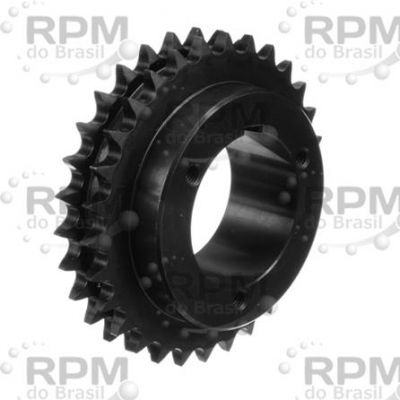

Manufacturer description1174465 Bushing Bore Roller Chain Sprocket - Split Taper, 50 / 5/8 in, 30 Teeth, Q1 Bushing, Steel Material
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
BROWNING — BROWNING D50Q30
- External key for higher torque capacity, aligns bolt holes
- Double split barrel for improved clamping
- Solid flange for true concentricity, easy installation
- Longer barrel for better support on the shaft
Specifications
| Brand | BROWNING |
| Category | BUSHED ROLLER CHAIN SPROCKETS |
| Bushing type | Split Taper |
| Outside diameter | 6.32 in |
| Chain number & pitch | 50 / 5/8 in |
| Pitch type | Single |
| Bushing size | Q1 |
| Tooth width | 0.332 in |
| Number of teeth | 30 |
| Width across tooth sets | 1.045 in |
| Number of strands across | 2 |
| Pitch diameter | 5.979 in |
| Material | Steel |
| Overall width | 2-53/64 in |
| Number of hubs | 1 |
| Hub diameter | 4-1/8 in |
| Length through bore | 2.5 in |
| Manufacturer upc number | 662289269167 |
| Bushing bore range | 3/4 to 2-11/16 in |
| Manufacturer catalog number | 1174465 |
