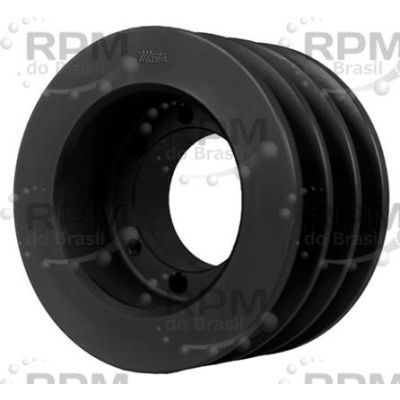

BROWNING 3B50SD

Name: BROWNING 3B50SD
Brand: BROWNING
SKU: 3B50SD

#3B50SD On request

Brand BROWNING

Category V-BELT PULLEYS

Part Number 3B50SD

1004548

Manufacturer description

1004548 Bushing Bore V-Belt Pulley - A, B Belt Section, 3 Groove, 4.6 (A) in, 5 (B) in Pitch Dia., 5.35 in O.D., QD Bushed, SD Series Bushing, Cast Iron Material

Price on request — a consultant will confirm lead time and terms.

Need to confirm compatibility?

Talk to a technical consultant

Call

Specifications

Brand	BROWNING
Category	V-BELT PULLEYS
Number of grooves	3
Keyway size	1/2 x 1/4 (1-13/16 to 2-1/4 Bore) , 1/4 x 1/8 (15/16 to 1-1/4 Bore) , 1/8 x 1/16 (1/2 to 9/16 Bore) , 3/16 x 3/32 (5/8 to 7/8 Bore) , 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) , 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in
Outside diameter	5.35 in
Material	Cast Iron
Length through bore	1.8125 in
Bushing bore range	1/2 to 2 in
Face width	2.5 in
Pitch diameter	4.6 (A) , 5 (B) in
Belt section size	B, A
Overall width	2-1/2 in
Bore type	QD Bushed
Pulley construction	Plain
Bushing series	SD
Cad drawing	https://www.3dcontentcentral.com/PremiumSSS-Download-Model.aspx?catalogId=12261&id=18613
