DODGE
Call
DODGE FB-SC-200
#FB-SC-200
On request
058529

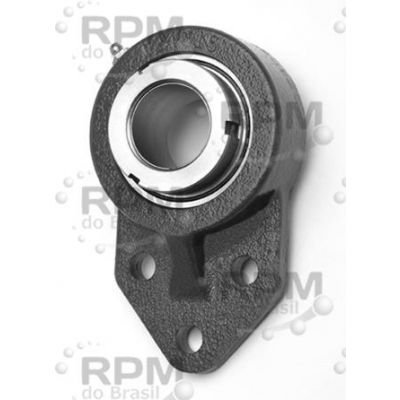

Manufacturer description058529 Flange-Mount Ball Bearing Unit - Three-Bolt Bracket Style, 2.0000 in Bore, Cast Iron Housing, Standard Duty, Set Screw Locking, Contact Seal
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | DODGE |
| Category | FLANGE-MOUNT BALL BEARING UNITS |
| Bore diameter | 2 in |
| Radial dynamic load capacity | 7891 lb |
| Bolt center-to-center length | 69.9 mm |
| Radial static load capacity | 5213 lb |
| Overall length/diameter | 117.6 mm |
| Seal type | Contact Seal |
| Bore type | Round |
| Length through bore | 52.3 mm |
| Duty type | Standard Duty |
| Finish/coating | Uncoated |
| Mounting type | Three-Bolt Bracket Style |
| Maximum rpm | 4500 RPM |
| Housing material | Cast Iron |
| Lubrication type | Lubrication Fitting |
| Locking device | Set Screw |
| Series | 210 |
| Expansion type | Non-Expansion Bearing (Fixed) |
| Manufacturer catalog number | 058529 |
