HUB CITY INC 0270-06708
#0270-06708
On request

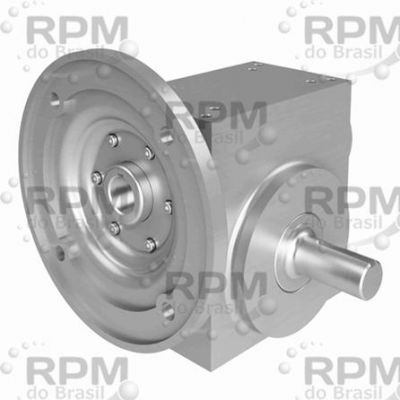

SSW264 100/1 C WR 182TC Right Angle Worm Gear Speed Reducer - Single Reduction, 100:1 Ratio, 2.63 in Center Distance, C-Face Quill, 1.1250 in Input Size, 182TC Frame
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
HUB CITY INC — HUB CITY INC 0270-06708
- Machine Polished 316 stainless steel housing and rounded caps for easy cleanability
- Universal Mounting Dimensions
- Factory lubricated with Food Grade synthetic lubricant - USDA H1
Specifications
| Brand | HUB CITY INC |
| Category | RIGHT ANGLE WORM GEAR SPEED REDUCERS |
| Reduction | Single |
| Maximum output torque | 851 in-lbs |
| Center distance | 2.63 in |
| Housing material | Stainless Steel |
| Maximum input horsepower | 0.386 @ 1750 hp, rpm |
| Service factor | 1.0 |
| Ratio | 100:1 |
| Manufacturer catalog | http://www.hubcityinc.com/documents/8K-MCC17010E10075EHubCityCleanLineGearDrivesandBrgs.pdf#page=10 |
| Manufacturer reducer size | SSW260 |
| Cad drawing | http://hubcity-ps.com/psconfig/tab/index.html?prj=cleanline_gear_drives/single_reduct_sswgd/series_ssw260/ssw264_asmtab.prj&values=MN=SSW264 |
| Input type | C-Face Quill |
| Manufacturer catalog number | 0270-06708 |
| Input size | 1.125 in |
| Manufacturer upc number | 662798843292 |
| Output type | Solid Shaft |
| Shipping dimensions height | 12 in |
| Output size | 1.25 in |
| Shipping dimensions length | 16 in |
| Style | C |
| Shipping dimensions width | 12 in |
| Nema / iec frame size | 182TC |
| Weight | 55 lbs |
| Maximum output rpm | 17.5 rpm |
