On request
HUB CITY INC
Call
HUB CITY INC 0270-07506
#0270-07506
On request

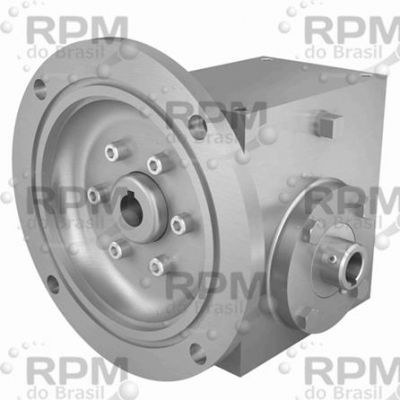

SSW155 5/1 B WR 56C .625 Right Angle Worm Gear Speed Reducer - Single Reduction, 5:1 Ratio, 1.54 in Center Distance, C-Face Quill, 0.6250 in Input Size, 56C Frame
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
HUB CITY INC — HUB CITY INC 0270-07506
- Machine Polished 316 stainless steel housing and rounded caps for easy cleanability
- Universal Mounting Dimensions
- Factory lubricated with Food Grade synthetic lubricant - USDA H1
Specifications
| Brand | HUB CITY INC |
| Category | RIGHT ANGLE WORM GEAR SPEED REDUCERS |
| Reduction | Single |
| Maximum output torque | 323 in-lbs |
| Center distance | 1.54 in |
| Housing material | Stainless Steel |
| Maximum input horsepower | 1.939 @ 1750 hp, rpm |
| Service factor | 1.0 |
| Ratio | 5:1 |
| Manufacturer catalog | http://www.hubcityinc.com/documents/8K-MCC17010E10075EHubCityCleanLineGearDrivesandBrgs.pdf#page=11 |
| Manufacturer reducer size | SSW150 |
| Cad drawing | http://hubcity-ps.com/psconfig/tab/index.html?prj=cleanline_gear_drives/single_reduct_sswgd/series_ssw150/ssw155_asmtab.prj&values=MN=SSW155 |
| Input type | C-Face Quill |
| Manufacturer catalog number | 0270-07506 |
| Input size | 0.625 in |
| Manufacturer upc number | 662798861456 |
| Output type | Hollow Bore |
| Shipping dimensions height | 11 in |
| Output size | 0.625 in |
| Shipping dimensions length | 11 in |
| Style | B |
| Shipping dimensions width | 9 in |
| Nema / iec frame size | 56C |
| Weight | 21 lbs |
| Maximum output rpm | 350 rpm |
