LINK-BELT (RPMBRND) P2U314
#P2U314
On request

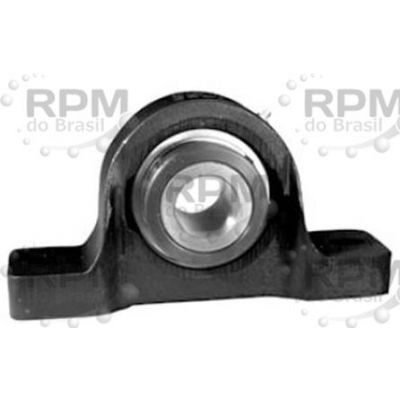

Pillow Block Ball Bearing Unit - Two-Bolt Base, 0.8750 in Bore, Cast Iron Material, Heavy Duty
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | LINK-BELT (RPMBRND) |
| Category | PILLOW BLOCK BALL BEARING UNITS |
| Mounting | Two-Bolt Base |
| Length through bore | 1.6719 in |
| Bore diameter | 0.875 in |
| Overall width | 2 in |
| Bore type | Round |
| Maximum operating temperature | 225 °F |
| Base to bore centerline | 2 in |
| Radial dynamic load capacity | 4810 lbf |
| Duty type | Heavy Duty |
| Bolt center-to-center length | 5.5 in |
| Housing material | Cast Iron |
| Maximum rpm | 9350 RPM |
| Locking device | Set Screw |
| Bolt size | 0.5 in |
| Seal type | Clearance/Non-Contact |
| Lubrication type | Lubrication Fitting |
| Overall length | 7 in |
| Series | 300 |
| Overall height | 3.6875 in |
| Manufacturer upc number | 662327882556 |
