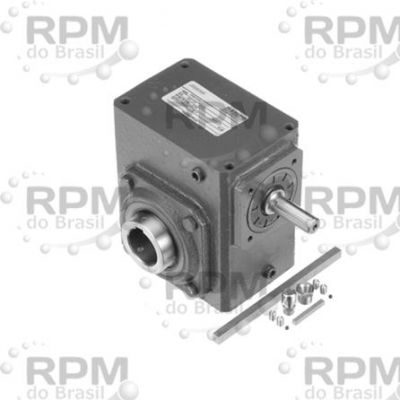

MORSE 516UH40

Name: MORSE 516UH40
Brand: MORSE
SKU: 516UH40

#516UH40 On request

Brand MORSE

Category RIGHT ANGLE WORM GEAR SPEED REDUCERS

Part Number 516UH40

XL0158

Manufacturer description

XL0158 Right Angle Worm Gear Speed Reducer - Single Reduction, 40:1 Ratio, 5.16 in Center Distance, Solid Shaft, 1.2500 in Input Size, Double Output Output

Price on request — a consultant will confirm lead time and terms.

Need to confirm compatibility?

Talk to a technical consultant

Call

MORSE — MORSE 516UH40

Rugged Cast-Iron Housing: Provides maximum strength and dependability
Integral Worm and Shaft: Carburized and hardened to 58RC for extra strength
Tapered Roller Bearings On Input and Output Shafts: Absorb radial and thrust loads
Cast Bronze Worm Gears: Provide optimum balance of strength and wear resistance
All Units Filled with Polyglycol Oil

Specifications

Brand	MORSE
Category	RIGHT ANGLE WORM GEAR SPEED REDUCERS
Reduction	Single
Standard base kit	XL9000
Center distance	5.16 in
Vertical low base kit	XD9002
Maximum input horsepower	5.560 @ 1750 rpm_x000D_ hp
Vertical high base kit	XD9003
Vertical j base kit	XL9003
Output direction	Double Output
Hollow output flange kit	XD9001
Manufacturer reducer size	516
Bushing kit	307BU
Input type	Solid Shaft
Fan cooling kit	XL9006
Input size	1.25 in
Torque arm kit	XD9005
Output type	Solid Shaft
Adjustable torque arm kit	XK9010
Output size	3.4375 in
Nema frame adapter kit	516MAK
Input torque	200.2400 in-lbs @1750 input rpm 1 HP
Maximum output rpm	43.75 rpm
Cad drawing	https://www.3dcontentcentral.com/PremiumSSS-Download-Model.aspx?catalogId=12261&id=4513
Maximum output torque	43.75 in-lbs @1750 input rpm
Manufacturer upc number	662000000000
Housing material	Cast Iron
Weight	221 lbs
Overhung load capacity	2531 lbs
