On request
MORSE
Call
MORSE HV406
#HV406
On request
323897

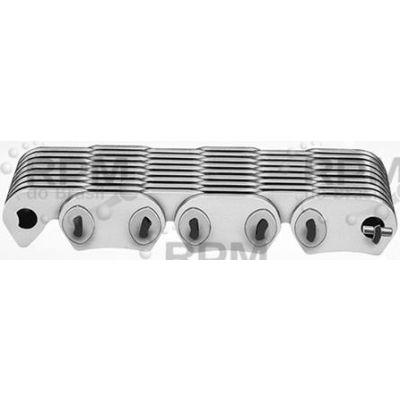

Manufacturer description323897 HV Inverted Tooth Chain - HV Chain Chain, Outside Style, 0.5000 in Pitch, 1.5000 in Overall Width, Carbon Steel Material
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
MORSE — MORSE HV406
- High Speed Performance
- Normal Operating range from 3000 to 7000 FPM with higher speed capability conditions
- High HP in a narrow width
- Smooth Performance the rolling action of chain joints and smooth chain sprocket engangement does not induce vibration
- High Efficiency up to 99.7% efficiency means power loss is minimal
Specifications
| Brand | MORSE |
| Category | SILENT CHAIN |
| Chain type | HV Chain |
| Average ultimate tensile strength | 15000 lbs |
| Pitch | 0.5 in |
| Width over drilled pins | 1.785 in |
| Chain construction | Outside |
| Width over riveted pins | 1.651 in |
| Material | Carbon Steel |
| Width between guides | 1.441 in |
| Chain overall width | 1.5 in |
| Inside width | 1.441 in |
| Manufacturer upc number | 662288459682 |
| Overall length | 10 ft |
| Weight | 1.80 lbs/ft |
| Lacing | 12 x 13 |
