On request
NSK
Call

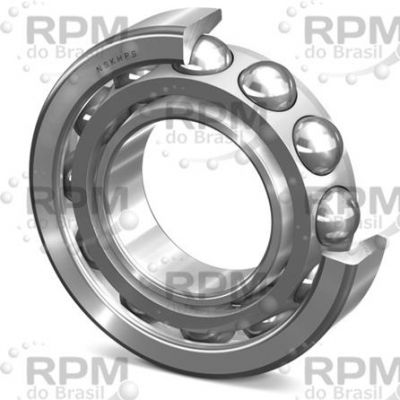

NSK 7213BMPC
#7213BMPC
On request
Angular Contact Bearing - 65 mm Bore, 120 mm OD, 23 mm Width, Open, 40 ° Contact Angle, C0
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | NSK |
| Category | ANGULAR CONTACT BEARINGS |
| Bore diameter | 65 mm |
| Operating temperature range | Maximum of +250 °F |
| Outside diameter | 120 mm |
| Cage material | Brass |
| Overall width | 23 mm |
| Outer ring width | 23 mm |
| Contact angle | 40 ° |
| Maximum rpm | 6000 RPM |
| Row type & fill slot | Single-Row Non-Fill Slot |
| Finish/coating | Uncoated |
| Internal clearance | C0 |
| Precision rating | ABEC 3 (ISO Class 6) |
| Closure type | Open |
| Fillet radius | 1.5 mm |
| Radial dynamic load capacity | 6500 kgf |
| Series | 72 |
| Radial static load capacity | 5350 kgf |
