NTN 3202C3
#3202C3
On request

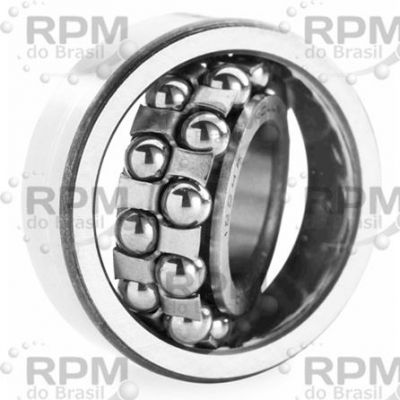

Double Row Angular Contact Bearing - 15 mm Bore, 35 mm OD, 0.6250 in Width, Open, Without Snap Ring, 32 ° Contact Angle, C3
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | NTN |
| Category | ANGULAR CONTACT BEARINGS |
| Bore diameter | 15 mm |
| Radial static load capacity | 10100 N |
| Outside diameter | 35 mm |
| Operating temperature range | -40 to 120 ºC |
| Overall width | 0.625 in |
| Cage material | Steel |
| Contact angle | 32 ° |
| Outer ring width | 15.88 mm |
| Row type & fill slot | Double-Row Non-Fill Slot |
| Maximum rpm | 15000 RPM |
| Internal clearance | C3 |
| Finish/coating | Uncoated |
| Bore type | Round |
| Precision rating | Class 0 |
| Closure type | Open |
| Fillet radius | 0.6 mm |
| Snap ring included | Without Snap Ring |
| Series | 32 |
| Bearing material | High Carbon Chrome Steel |
| Weight | 0.068 kg |
| Radial dynamic load capacity | 12400 N |
| Manufacturer product page | http://bearingfinder.ntnamericas.com/item/angular-contact-ball-bearings/double-row-angular-contact-ball-bearings/3202c3/?plpver=1009 |
