On request
SEALMASTER
Call
SEALMASTER NP47
#NP47
On request
NP-47 PIL BLK

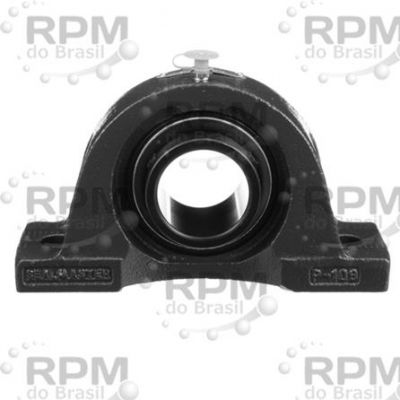

Manufacturer descriptionBall Bearing Unit - Two-Bolt Base, 2.9375 in Bore, Cast Iron Material, Normal Duty, Non-Expansion Bearing (Fixed)
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | SEALMASTER |
| Category | PILLOW BLOCK BALL BEARING UNITS |
| Mounting | Two-Bolt Base |
| Overall width | 3-1/16 in |
| Bore diameter | 2.9375 in |
| Operating temperature range | -20 to +220 °F |
| Bore type | Round |
| Radial dynamic load capacity | 14839 lb |
| Base to bore centerline | 3.5 in |
| Radial static load capacity | 11224 lb |
| Duty type | Normal Duty |
| Base width | 3-1/2 in |
| Housing material | Cast Iron |
| Bolt center-to-center length | 8-1/2 to 9-1/2 in |
| Locking device | Set Screw |
| Maximum rpm | 2450 RPM |
| Seal type | Felt Seal |
| Lubrication type | Lubrication Fitting |
| Expansion type | Non-Expansion Bearing (Fixed) |
| Series | NP |
| Overall length | 13 in |
| Replacement bearing | 2-215 |
| Overall height | 7 in |
| Cad drawing | https://www.3dcontentcentral.com/PremiumSSS-Download-Model.aspx?catalogId=12261&id=1020301 |
| Finish/coating | Uncoated |
