On request
SEALMASTER
Call
SEALMASTER FBMH-20RT
#FBMH-20RT
On request
716659

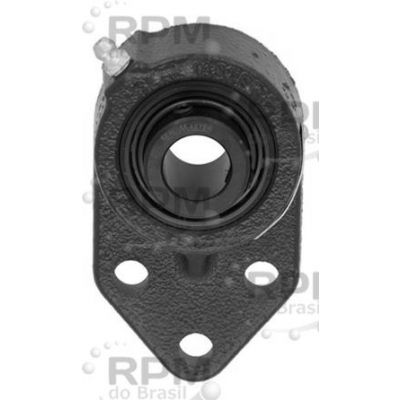

Manufacturer descriptionFlange-Mount Ball Bearing Unit - Three-Bolt Bracket Style, 1.2500 in Bore, Cast Iron Housing, Standard Duty, Skwezloc Collar Locking, Contact with Flinger
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | SEALMASTER |
| Category | FLANGE-MOUNT BALL BEARING UNITS |
| Bore diameter | 1.25 in |
| Radial static load capacity | 2567 lb |
| Bolt center-to-center length | 1.875 in |
| Seal type | Contact with Flinger |
| Overall length/diameter | 3.2188 in |
| Length through bore | 2-15/32 in |
| Bore type | Round |
| Operating temperature range | -20 to +200 °F |
| Duty type | Standard Duty |
| Finish/coating | Uncoated |
| Mounting type | Three-Bolt Bracket Style |
| Maximum rpm | 4500 RPM |
| Housing material | Cast Iron |
| Lubrication type | Lubrication Fitting |
| Locking device | Skwezloc Collar |
| Series | FBMH-T |
| Expansion type | Non-Expansion Bearing (Fixed) |
| Replacement bearing | MH-20RT |
| Radial dynamic load capacity | 4381 lb |
