SMC VV5QC21-10C8SD0
#VV5QC21-10C8SD0
On request

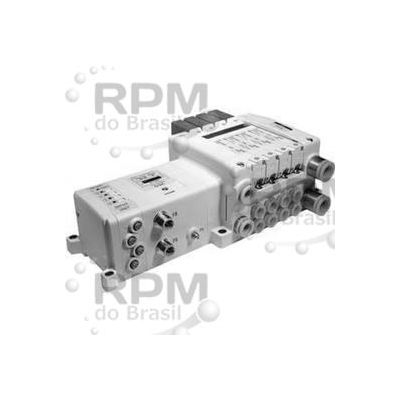

SMC® VV5QC21-10C8SD0 Stacking Pneumatic Manifold, Series Compatibility: VQC2000, Plug-in Elec. Connect., 10 Stations
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | SMC |
| Category | PNEUMATIC MANIFOLDS |
| Number of stations | 10 |
| Number of pins | 16 |
| For use with series | VQC2000 |
| Port location | Side |
| Base type | Stacking |
| Operating temperature range | -10 to +50 °C |
| Valve electric connector type | Plug-in |
| Proof pressure | 1.5 Mpa |
| Wiring type | Serial Transmission System |
| Thread standard | ISO |
| Fluid compatibility | Air, Inert Gases |
| Port size | 8 mm |
| Mounting type | Direct |
| Overall length | 360.5 mm |
| Cylinder port size | 8 mm |
| Overall width | 120 mm |
| Pressure port size | 12 , 10 mm |
| Overall height | 90 mm |
| Exhaust port size | 12 , 10 mm |
