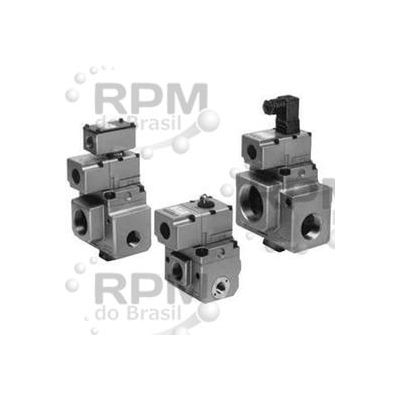

SMC VP3145-045DA
#VP3145-045DA
On request
Solenoid-Operated Air Control Valve - Body Ported (Side), 3 Port, 2 Position, Single Solenoid
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | SMC |
| Category | SOLENOID-OPERATED AIR CONTROL VALVES |
| Number of ports | 3 |
| Maximum operating pressure | 101 psi |
| Piping type | Body Ported (Side) |
| Seal material | Rubber |
| Number of positions | 2 |
| Operating medium | Air |
| Number of solenoids | Single |
| Normal state | Normally Closed, Normally Open |
| Solenoid supply voltage | 24 V dc |
| Port size | 1/2 BSPT |
| Solenoid electrical entry | DIN Terminal |
| Port size - exhaust | 3/8 NPTF |
| Flow coefficient (cv) / flow factor (kv) | 5.8 (2 to 3 (OUT to EXH)) , 6.2 (1 to 2 (IN to OUT)) Cv |
| Standards met | JIS |
| Operating temperature range | 32 to 140 °F |
