SMC SS5Y9-23-05
#SS5Y9-23-05
On request

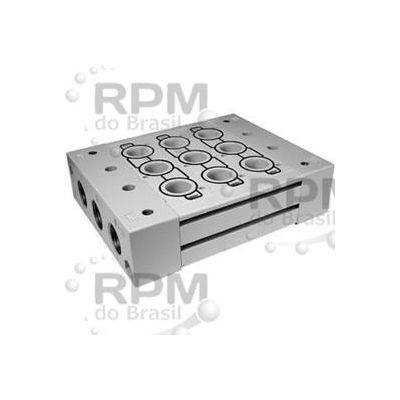

SMC® SS5Y9-23-05 Stacking Cassette Pneumatic Manifold, Series Compatibility: SY9000, 5 Stations, Compatible Fluid: Air
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | SMC |
| Category | PNEUMATIC MANIFOLDS |
| Number of stations | 5 |
| Exhaust port size | 3/8 in |
| For use with series | SY9000 |
| Port location | Top |
| Base type | Stacking Cassette |
| Operating temperature range | -10 to +50 °C |
| Wiring type | Individual Connector |
| Thread standard | BSPT |
| Fluid compatibility | Air |
| Overall length | 198 mm |
| Mounting type | Direct |
| Overall width | 164.3 mm |
| Cylinder port size | 12 mm |
| Overall height | 92.5 mm |
| Pressure port size | 3/8 in |
