On request
TIMKEN (FAFNIR)
Call
TIMKEN (FAFNIR) SCJT2
#SCJT2
On request

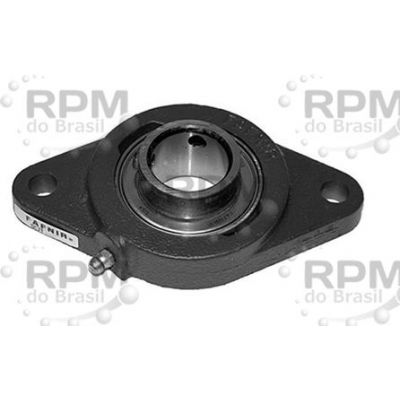

Flange-Mount Ball Bearing Unit - Two-Bolt Flange, 2.0000 in Bore, Cast Iron Housing, Intermediate Duty, Set Screw Locking, Contact Seal
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
TIMKEN (FAFNIR) — TIMKEN (FAFNIR) SCJT2
- Ideal for applications where minimum shaft length is required
- Assembled with GYA-RRB bearings with positive contact land-riding seals and setscrew locking
- Factory pre-lubricated with grease fitting for re-lubrication
- Cast iron housing with contact seal
Specifications
| Brand | TIMKEN (FAFNIR) |
| Category | FLANGE-MOUNT BALL BEARING UNITS |
| Bore diameter | 2 in |
| Radial static load capacity | 6400 lb |
| Bolt center-to-center length | 7.25 in |
| Seal type | Contact Seal |
| Overall length/diameter | 8.5 in |
| Length through bore | 1-53/64 in |
| Bore type | Round |
| Finish/coating | Uncoated |
| Duty type | Intermediate Duty |
| Maximum rpm | 2710 RPM |
| Mounting type | Two-Bolt Flange |
| Lubrication type | Lubrication Fitting |
| Housing material | Cast Iron |
| Series | SCJT |
| Locking device | Set Screw |
| Standards met | FDA Compliant, USDA Compliant |
| Expansion type | Non-Expansion Bearing (Fixed) |
| Replacement bearing | GYA200RRB |
| Radial dynamic load capacity | 10800 lb |
