TIMKEN (TORRINGTON) NU226EMAC3
#NU226EMAC3
On request

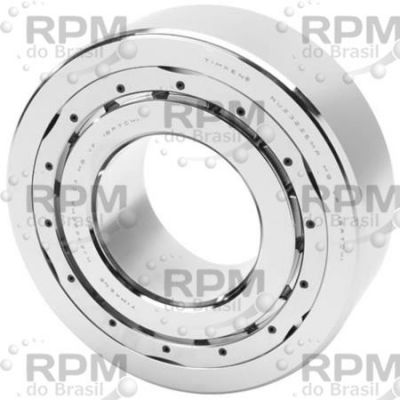

Cylindrical Roller Bearing - Straight, 130 mm ID, 230 mm OD, 40 mm Width, C3 Internal Clearance
Price on request — a consultant will confirm lead time and terms.
Need to confirm compatibility?
Talk to a technical consultant
Specifications
| Brand | TIMKEN (TORRINGTON) |
| Category | CYLINDRICAL ROLLER BEARINGS |
| Bore diameter | 130 mm |
| Static load capacity | 104000 lbf |
| Outside diameter | 230 mm |
| Precision rating | Not Rated |
| Overall width | 40 mm |
| Maximum rpm | 3100 RPM |
| Flanges | (2) Outer Ring |
| Bearing material | Chrome Steel |
| Bore type | Straight |
| Cage material | Brass |
| Number of rows | 1 |
| Finish/coating | Uncoated |
| Internal clearance | C3 |
| Closure type | Open |
| Ring separation | Separable Inner Ring |
| Outer ring width | 40 mm |
| Operating temperature range | Maximum of +302 °F |
| Fillet radius | 3 mm |
| Dynamic load capacity | 92300 lbf |
| Series | NU |
